SUPERHIDIC®: Innovative Energy Saving Distillation System
Summary
SUPERHIDIC developed by TOYO provides an excellent energy saving above 50% compared to conventional distillation system in various industrial applications.
SUPERHIDIC offers attractive economics without utilizing special equipment but applying well proven technology related to distillation and heat transfer. Moreover good maintainability can be achieved with SUPERHIDIC.
Features
SUPERHIDIC is co-licensed by National Institute of
Advanced Industrial Science and
Technology and Toyo Engineering Corporation.
-
Side-exchanges accomplished by stabbed-in heat exchangers
- Side-exchangers can be provided at composition where enthalpy change should be provided.
- Heat transfer area can be adjusted so as to meet desirable heat duty.
- Pairing of stages between rectifying section and stripping section can be determined in consideration of desirable heat duty and temperature difference.
- Overall heat transfer coefficient can be predicted in high confidence level.
-
Rectifying section located below stripping section
- Side-exchanges can be accomplished by means of thermo-siphon/gravity.
- Normal trays or packing is utilized.
- Side-cut to obtain intermediate product or multiple-feed can be carried out.
- Feed stage can be optimized.
-
Consequently, following advantages are achieved
- Highest energy saving performance in distillation system developed so far.
- Good maintainability as normal facility.
Concept of SUPERHIDIC

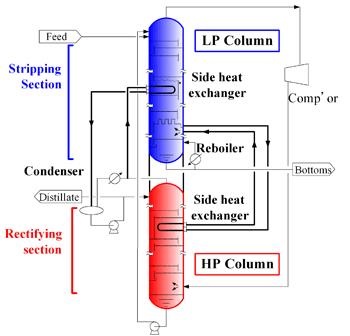

Simplified Flow Scheme of SUPERHIDIC
Applications
Excellent energy saving with good economics is expected by introducing SUPERHIDIC for the following conditions at existing column modification or new installation.
- Temperature difference between the overhead and the bottom lower than 80℃
- Expensive utilities
- Large scale reboiler and/or condenser duty

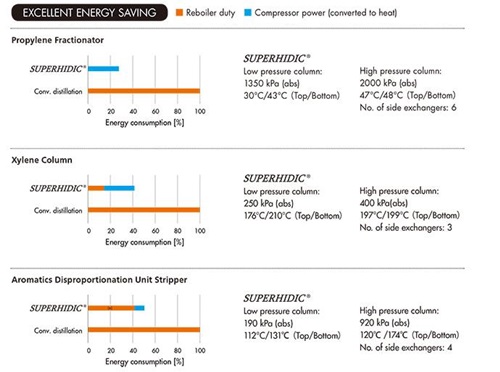

Examples of the application
*SUPERHIDIC® can make reboiler utility at lower pressure level.

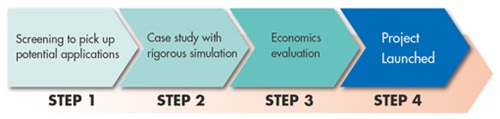

Implementation Scheme
